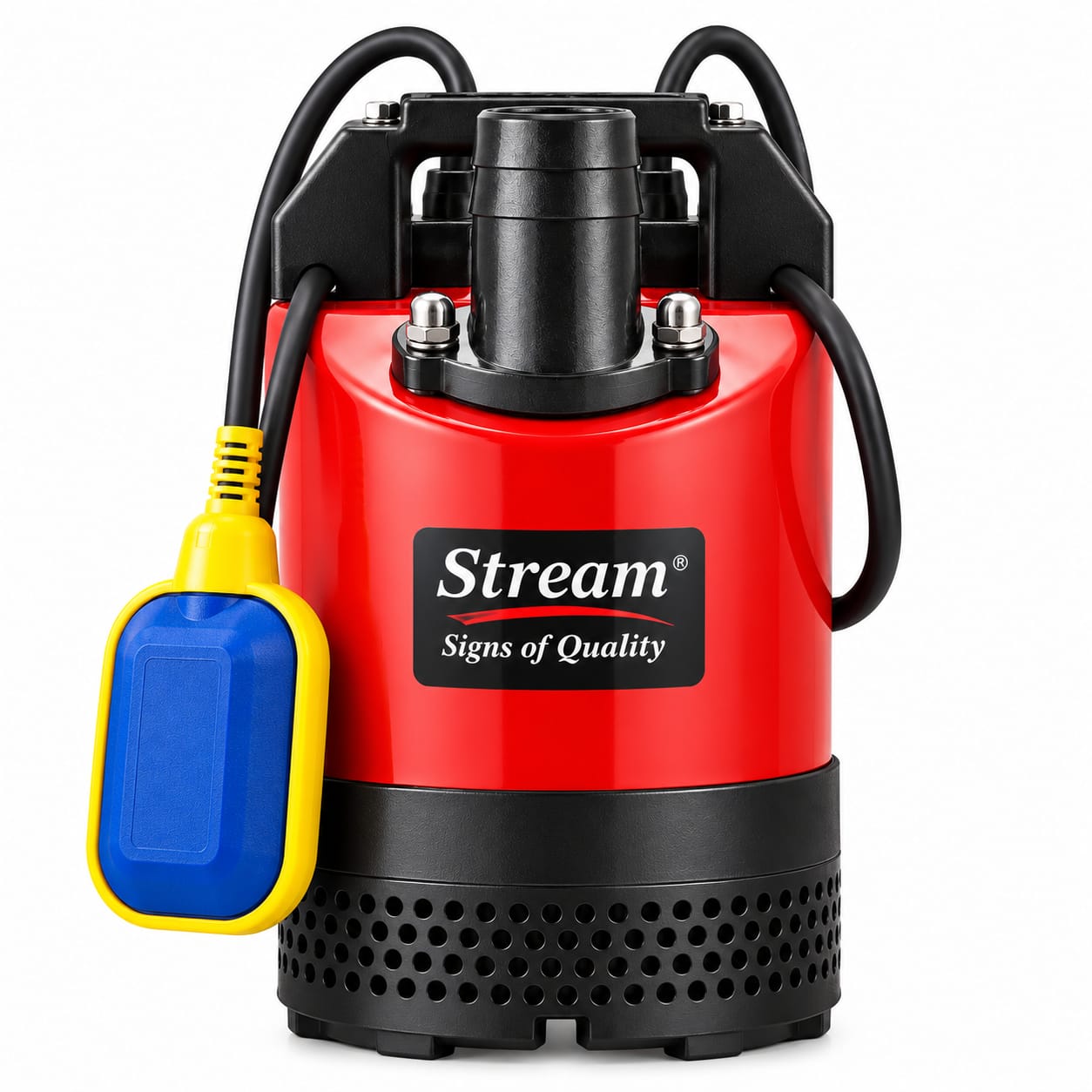

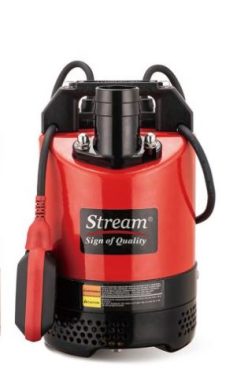

Submersible Dewatering PUMP SPK530AF

The SPK530 series is designed for applications requiring substantial emergency drainage. It can adjust the discharge direction from vertical to horizontal to avoid hose kink. It includes models with automatic float switches, as well as those suitable for low water levels

• 2″ Submersible Pump
• Removes Surface Water To 2mm
• 250L Per Min Flow Rate
• Pumps Water Vertically To 11m
• Removes Solids Up To 6mm
• Float Switch For Auto Operation
• Thermal Protected Motor
• Handles Clean & Dirty Water

• Specification	Detail
  Voltage	220V
  Motor Power	530 W
  Max Flow Rate	250 Litres per minute (approx. 15,000 L/hr)
  Max Lifting Height (Head)	11 metres
  Max Submersion Depth	5 metres
  Outlet Diameter	50mm (2 Inch)
  Max Solids Diameter	6.0mm
  Cut Off Switch	Automatic (via float switch)
  Power Cable Length	10 metres
  Weight	15.6 kg
  Material Intake	Clean & Dirty Water
  Protection Class	IP68

  Key Features
  • Automatic Operation: The integrated float switch automatically activates the pump when the water level rises and shuts it off once the water has been lowered, ideal for unattended use in basements or trenches.
  • Durable Construction: It features an AlSi12 pump housing and a stainless iron pump shaft for wear resistance and durability.

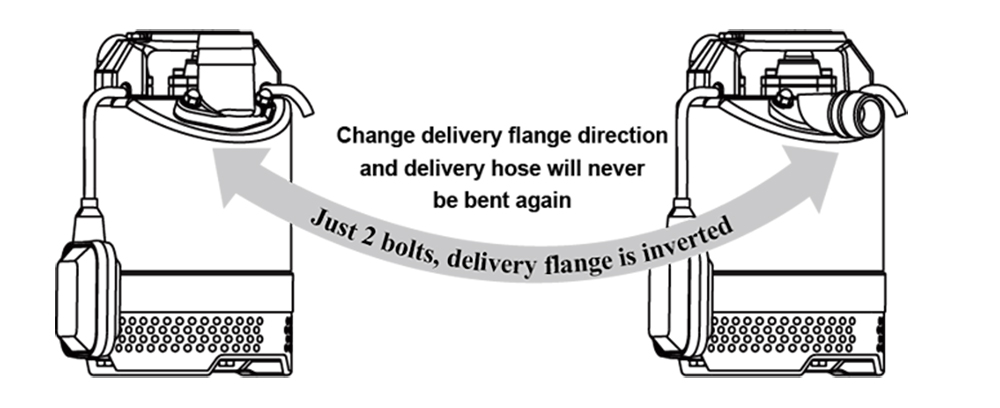

  • Adjustable Discharge: The outlet direction can be adjusted from vertical to horizontal to prevent hose kinks and suit different applications.
  • Motor Protection: The motor is thermally protected to prevent overheating, ensuring reliability and safety.
  • Low Pumping Capability: This model is capable of removing surface water down to a minimum residue level of approximately 2mm.
