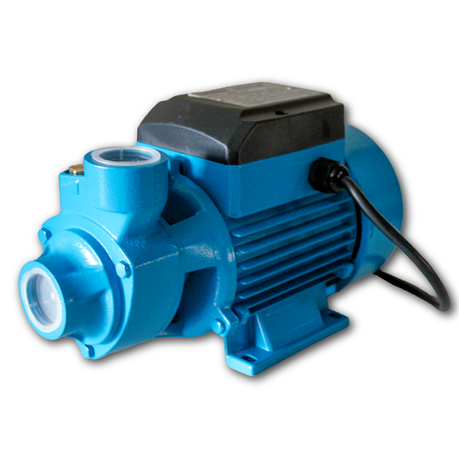

Stream QB60 0.37kW 230V Centrifugal Pump

The SQB series are peripheral pumps, with peripheral impeller containing numerous radial blades in its edge, suitable for pumping clean water and chemically non-aggressive liquid. These pumps can be installed as supplementary boosters to borehole systems, existing water distribution systems, residential and light commercial applications as well as in landscaping and irrigation systems.

Stream SQB60 0.37kW 230V Centrifugal Pump

The SQB series are peripheral pumps, with peripheral impeller containing numerous radial blades in its edge, suitable for pumping clean water and chemically non-aggressive liquid. These pumps can be installed as supplementary boosters to borehole systems, existing water distribution systems, residential and light commercial applications as well as in landscaping and irrigation systems.

Applications:

• Supplementary booster to borehole installations
• Landscaping & irrigation installations
• Domestic hot & cold water systems
• Pressurised water distribution systems
• Light commercial and retail water distribution

Technical Features:

• Pump body: cast iron
• Pump casing: aluminium
• Impeller: brass (stainless steel optional)
• Insulation class: B/F
• Mechanical seal: steatite ceramic / metalized carbon
• Closed motor, externally ventilated
• Max. water temperature: 80deg. C
• Max working pressure: 1000kPa (10 bar)

Performance Data (SQB60):

• Max suction head: 9m
• Max operating head (H): 36m
• Max flow (Q=L/min): 36L/min
• Pump duty: continuous rated

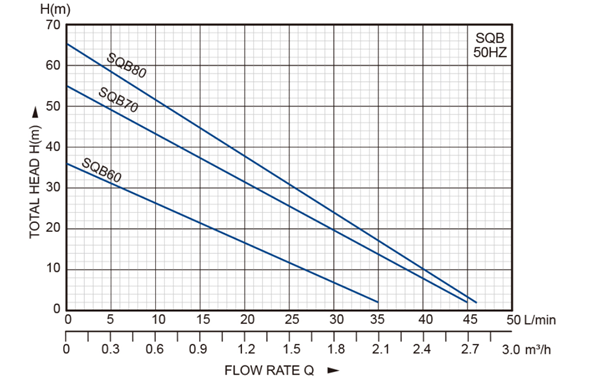

Pump Performance Curve:
