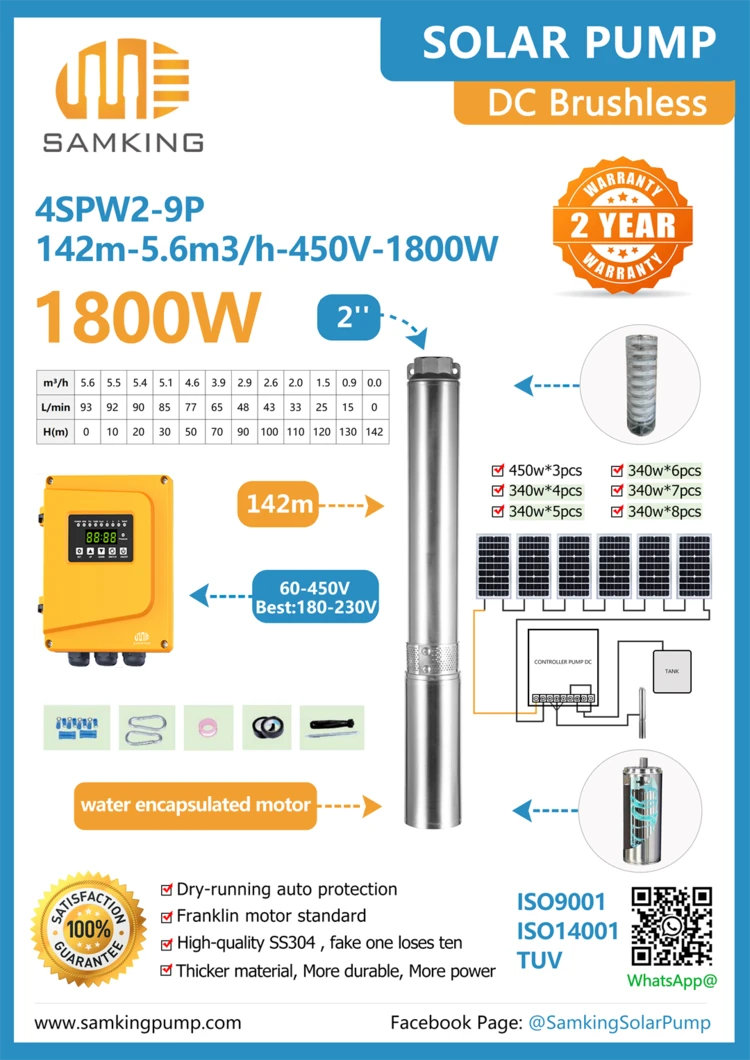

SamKing A/D-4SPW2-9P Pump/Motor/Controller
Original price was: R19 141,29.R11 197,65Current price is: R11 197,65.
1.5-Inch 1800W AC/DC Solar Submersible Pump for Greenhouse Farming
Model: SAMKING A/D-4SPW2-9P (142m | 5.6m³/h | 450V | 1800W)
The SAMKING Solar Pump is a premium-quality, versatile centrifugal pump equipped with a built-in controller for extended service life and reliable performance. Designed for greenhouse farming and similar applications, this pump is both economical and practical.
This model supports both AC and DC power sources, offering flexibility for various setups. It comes with a one-year warranty covering the DC solar pump and the DC controller.
Please note: Solar panels are not included in the package.
Important Information:
-
Recommended setup: Use 550W solar panels connected in series
-
The controller is IP65-rated, but should not be installed in direct sunlight
-
VOC (Open Circuit Voltage) = voltage when no load is connected
Vmp (Voltage at Maximum Power) = voltage under load -
Exceeding specified limits can result in serious damage or permanent failure
Solar Water Pump Motor Details
Material: AISI 304
Type: BLDC motor
Feature: Encapsulated water filled
Bearing: Thrust bearing system
Current: Max. DC 15A
Submersion: Max. 150m
Water Temp: Max. 40°C
Efficiency: Max. 85%
Insulation Class: F
Max Voltage: DC Max. VOC 100V
Optimal Voltage: DC Best. Vmp 40-90V
Max Speed (Plastic): 4500 RPM
Max Speed (SS304): 4000 RPM
Max Speed (Helical): 4000 RPM
Enclosure Class: IPX8
Required Cooling Flow: 0.5L/s
What’s Included in the Solar-Powered Water Well Pump Kit
• 1* Pump controller with MPPT function
• 1* Electric float switch for water tank
• 1* Waterproof adhesive tape
• 1* PVC electrical adhesive tape
• 1* PTFE tape
Solar Water Pump Controller Details
Function: Voltage/current/power display
Voltage: 40-90Vmp/100Voc
MPPT Efficiency: Max.98%
Enclosure Class: IP65
PROTECTION TYPE
Dry-Run: Yes
Reverse: Yes
Phase Loss: Yes
Over-Voltage: Yes
Low-Voltage: Yes
Over-Current: Yes
Over-Load: Yes
Over-Power: Yes
Over-Temperature: Yes
Stall: Yes
Error Display: Yes
Solar Product Advantages:
/ Stainless Steel-AISI 304 (316 Optional)
/ BLDC High Efficiency Motor
/ External Controller
/ Powered by DC Power Only
/ Voltage/Current/Power/Speed Display
/ Encapsulated water filled motor(No pollution risk)
/ Soft start running makes system’s life longer
/ Thrust bearing system
/ Positive and negative pole reverse connection alarm
/ Over-load/Over-current/Over-voltage/Low-voltage protection
/ Dry protection(No additional float sensor required)
/ A wide range of accessories
Solar Pump End:
Stainless steel: AISI 304 (316 optional)
Non-return valve
Recommend Max Input
Standards:
Voltage: 80-180
Power (W): 1200
Max flow (m3/hr): 5
Max Head: 100
Diameter: 4″
Outlet: 2″
Solar Panel: 4*410W
Controller type: External/Internal
Impeller: Plastic
