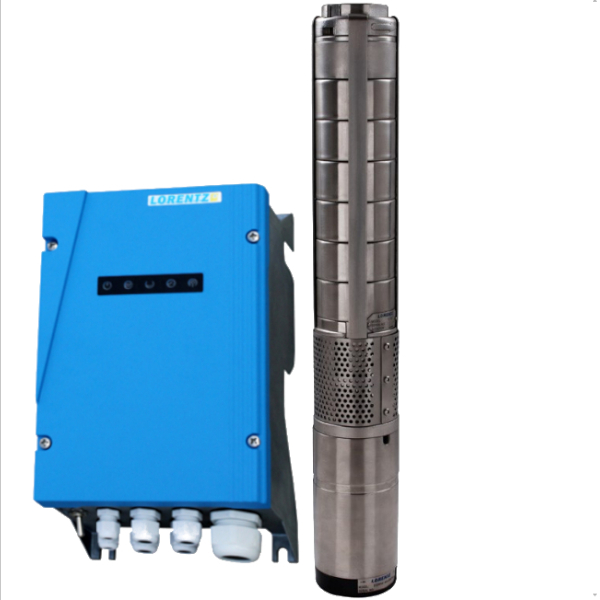

Lorentz PS2 600 CSJ 3-9 solar borehole pump

System overview

• Head max. 50m
• Flow rate max. 4.1m^3/h
• Power rating 0.70kW

Controller PS2-600

• Controlling and monitoring
• Control inputs for dry running protection, remote control etc.
• Protected against reverse polarity, overload and over-heating.
• Integrated MPPT (Maximum Power Point Tracking)
• Battery operation: Integrated low voltage disconnect

Motor ECDRIVE 600-C

• Maintenance-free brushless DC motor
• Water filled
• Premium materials, stainless steel: AISI 304/316
• No electronics in the motor

Pump End PE C-SJ3-9

• Non-return valve
• Premium materials, stainless steel: AISI 304
• Centrifugal pump
