Solar Submersible Pump System for 4″ wells.

• Download Information Sheet.

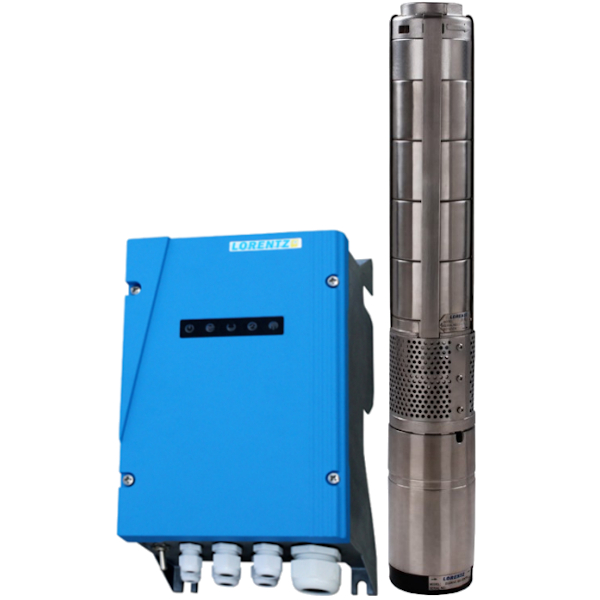

Lorentz PS2-1800 C-SJ12-4 solar borehole pump

System overview

• Head max. 18m
• Flow rate max. 20m^3/h
• Power rating 1.7kW

Controller PS2-1800

• Controlling and monitoring
• Control inputs for dry running protection, remote control etc.
• Protected against reverse polarity, overload and over-heating.
• Integrated MPPT (Maximum Power Point Tracking)
• Battery operation: Integrated low voltage disconnect

Motor ECDRIVE 1200-C / ECDRIVE 1800-C

• Maintenance-free brushless DC motor
• Water filled
• Premium materials, stainless steel: AISI 304/316
• No electronics in the motor
• Integrated Sun Sensor

Pump End PE C-SJ12-4

• Non-return valve
• Premium materials, stainless steel: AISI 304
• Centrifugal pump
