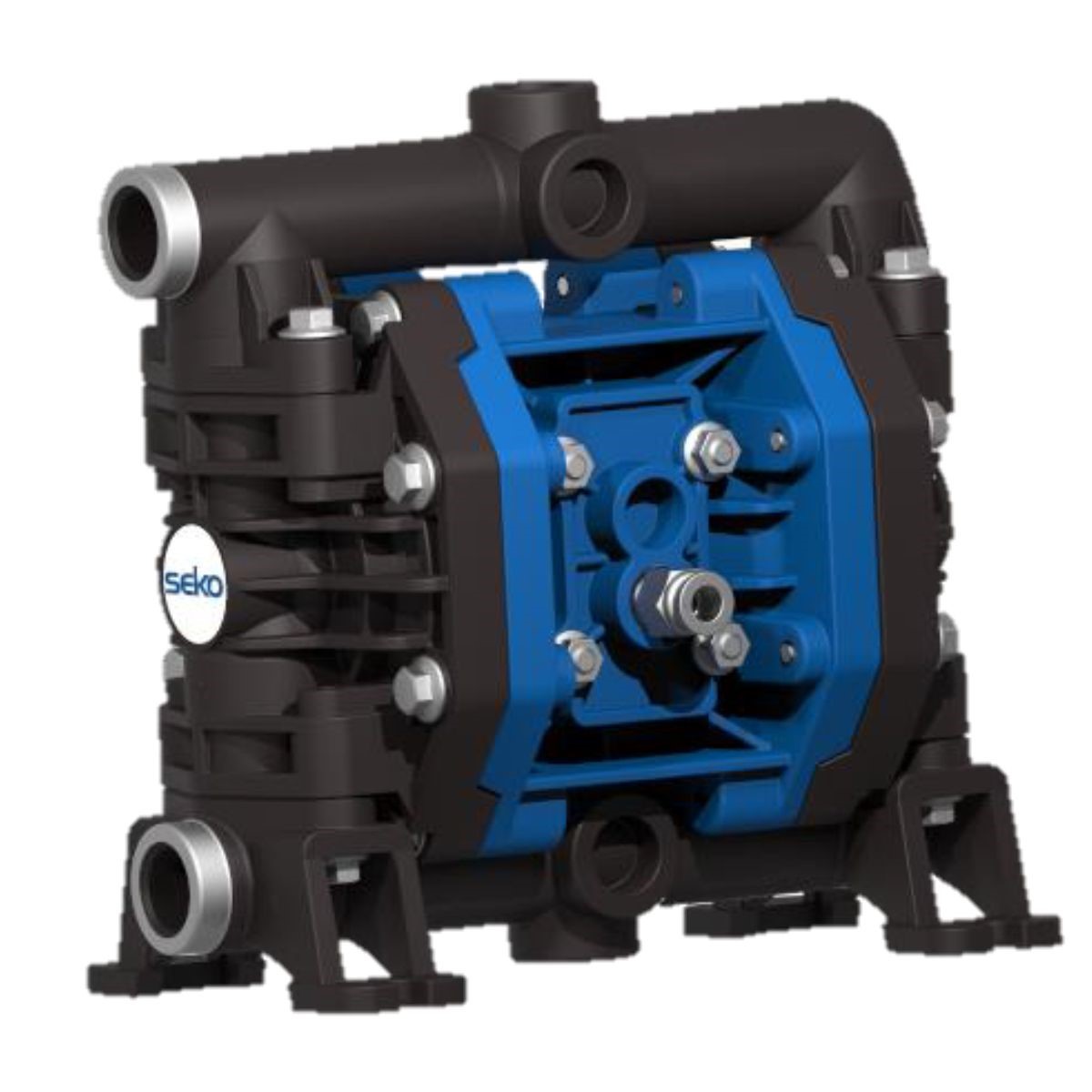

ARKAD 65LT PP FPM
R19 301,65
TECHNICAL DATA
Connections:
-Fluid 1/2”
-Air 1/4”
Max Flowrates: 65 l/min
Max air pressure: 8 bar
Max delivery head: 80 m
Max suction head:
-Dry 4 m
-Wet 9.8 m
Max solid passing: 3.5 mm
Noise level: 85 dB
Displacement per stroke: 192 cc
Pump casing materials:
-PP
-PVDF+CF
-ALUMINIUM
-AISI
Max viscosity: 20.000 cPs
Technical Data_J_0_060_rev 1.0
ARKAD diaphragm pumps are characterized by exceptional performance, power and strength, making them ideal for pumping liquids with very high apparent viscosity up to 55.000 cPs (at 20°C), even if containing suspended solids.
The stall-prevention pneumatic system assures a safe pump running and it does not need lubricated air.
Self-priming dry capacity even with considerable suction head, fine tuning of speed without pressure loss and the possibility of dry operation without suffering damage mean that these pumps offer unrivalled versatility. In addition, the huge choice of construction materials allows selection of optimum chemical compatibility with the fluid and/or environment without neglecting the temperature range.
