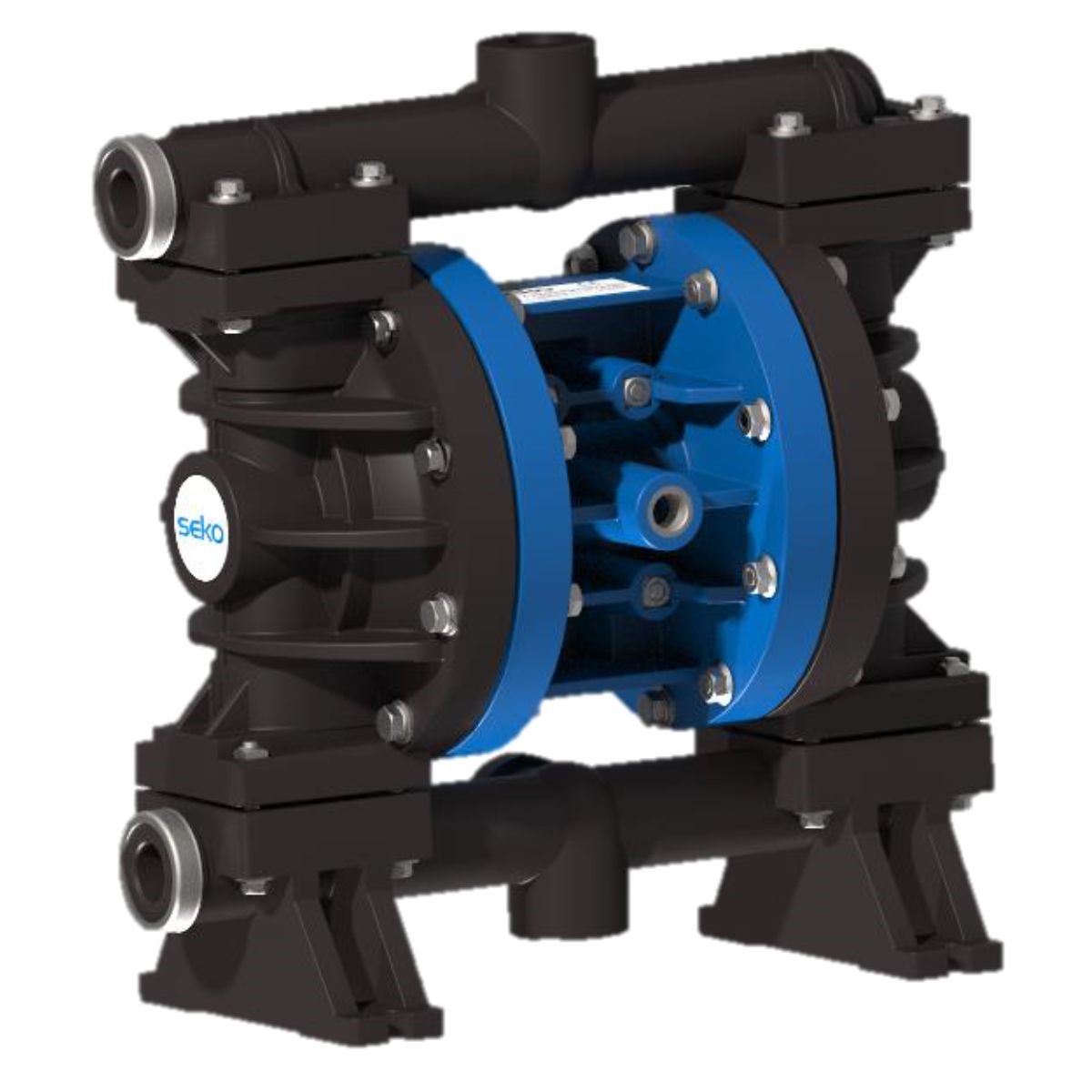

ARKAD 120LT PP FPM PUMP
R17 953,86
TECHNICAL DATA
• Connections:
– Fluid 1”
– Air 1/4”
• Max Flowrates: 120 l/min
• Max air pressure: 8 bar
• Max delivery head: 80 m
• Max suction head:
-Dry 4 m
– Wet 9.8 m
• Max d. passing solids: 4 mm
• Noise level: 90 dB
• Displacement for cycle: 400 cc
• Pump casing materials:
– PP
– PVDF+CF
– Aluminum
– SS
• Max viscosity: 25.000 cPs
ARKAD diaphragm pumps are characterized by exceptional performance, power and strength, making
them ideal for pumping liquids with very high apparent viscosity up to 55.000 cPs (at 20°C), even if
containing suspended solids.
The stall-prevention pneumatic system assures a safe pump running and it does not need lubricated air.
Self-priming dry capacity even with considerable suction head, fine tuning of speed without pressure loss
and the possibility of dry operation without suffering damage mean that these pumps offer unrivalled
versatility.
In addition, the huge choice of construction materials allows selection of optimum chemical
compatibility with the fluid and/or environment without neglecting the temperature range.
Technical Data_J_0_120_rev 1.0
