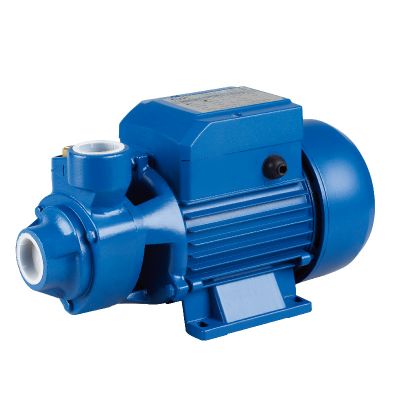

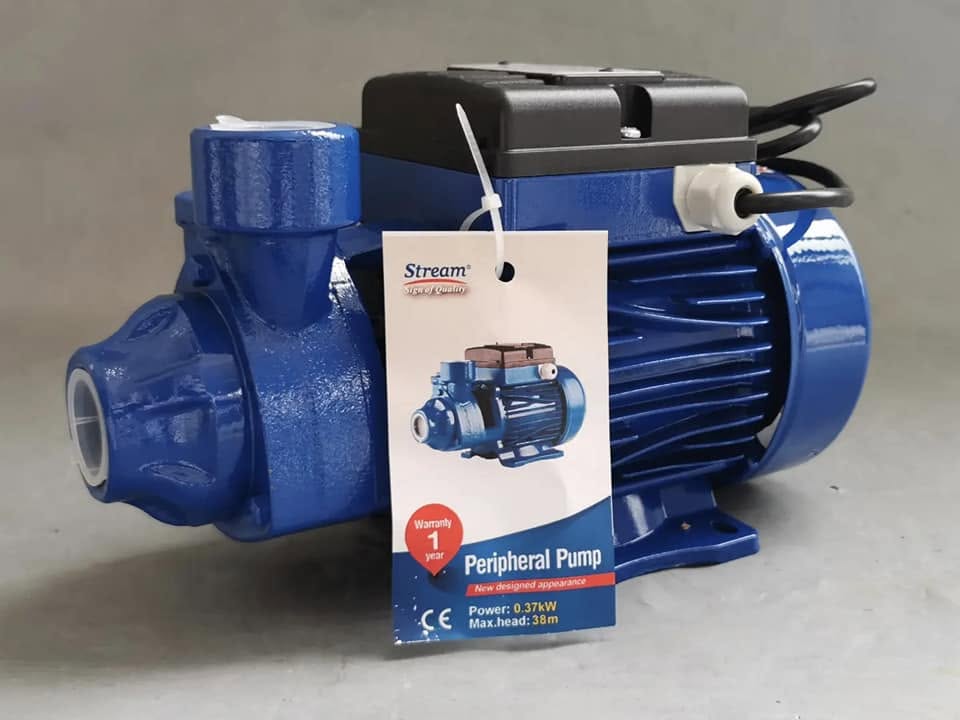

Stream SQB60 0.37kw 230V Peripheral Pump
R1 098,94
Stream SQB60 0.37kW 230V Peripheral Pump

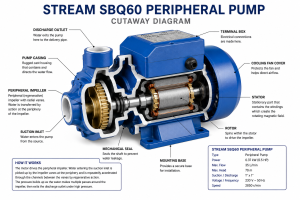

The SQB series are peripheral pumps, with peripheral impeller containing numerous radial blades in its edge, suitable for pumping clean water and chemically non-aggressive liquid. These pumps can be installed as supplementary boosters to borehole systems, existing water distribution systems, residential and light commercial applications as well as in landscaping and irrigation systems.
Construction features
Pump Body: cast iron
Motor Housing: aluminum
Shaft: 45# steel/stainless steel
Impeller: brass
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44/IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon

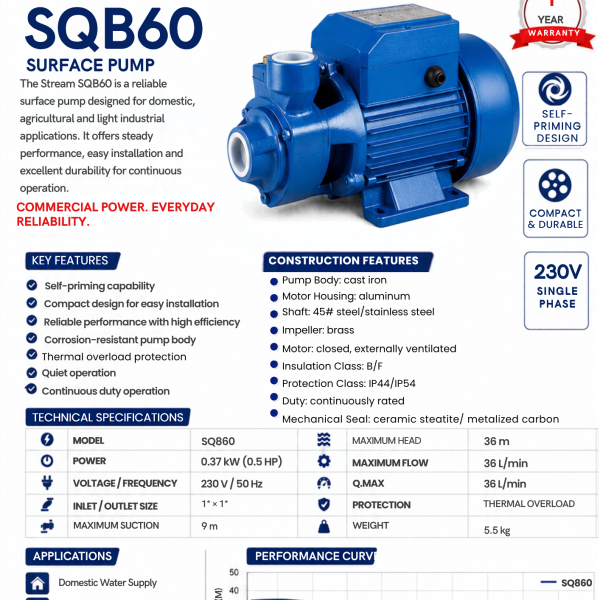

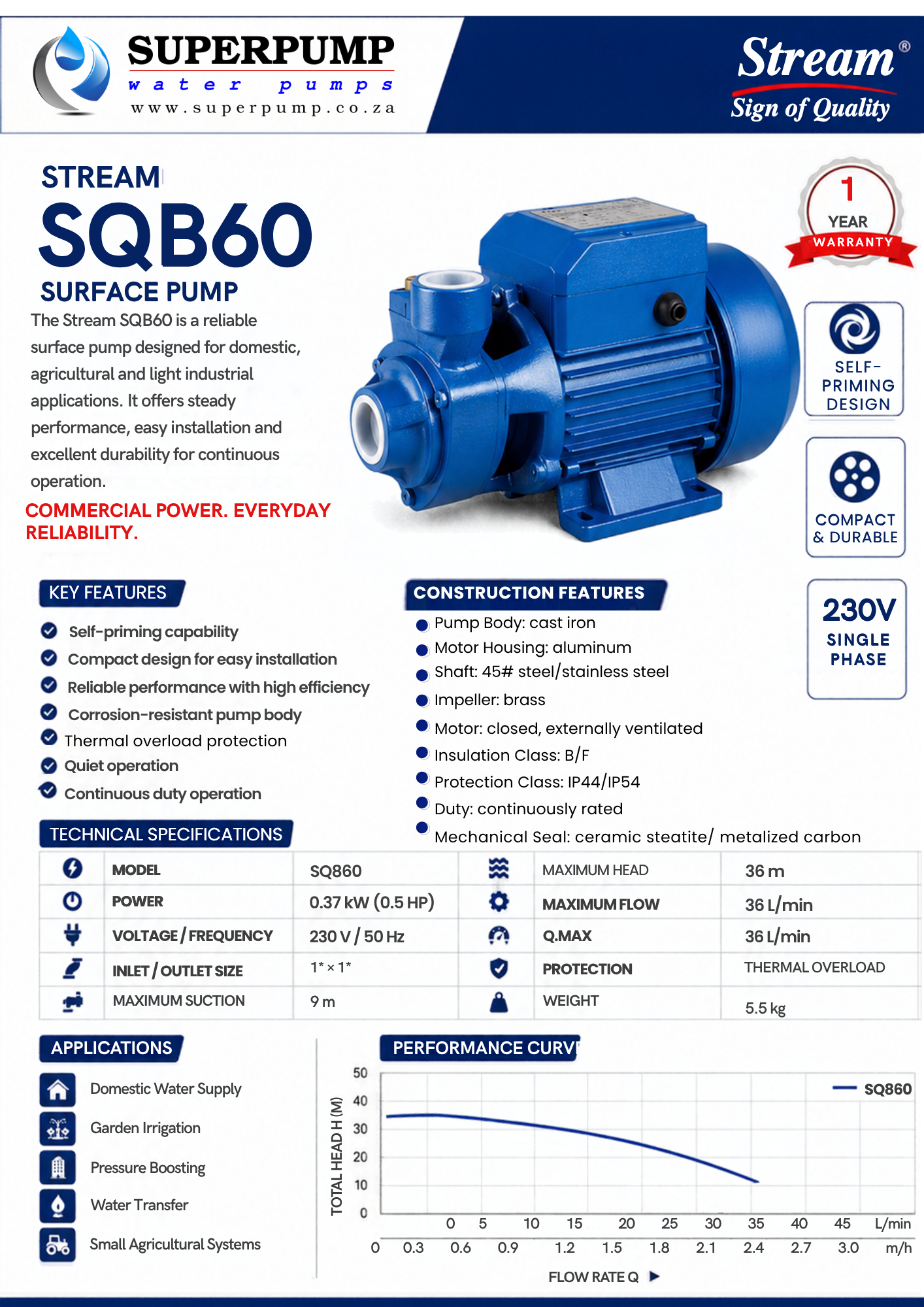

The Stream SQB60 is a reliable surface pump designed for domestic, agricultural and light industrial applications. It offers steady performance, easy installation and excellent durability for continuous operation.
The SQB series are peripheral pumps, with peripheral impeller containing numerous radial blades in its edge, suitable for pumping clean water and chemically non-aggressive liquid. These pumps can be installed as supplementary boosters to borehole systems, existing water distribution systems, residential and light commercial applications as well as in landscaping and irrigation systems.
Applications:
- Supplementary booster to borehole installations
- Landscaping & irrigation installations
- Domestic hot & cold water systems
- Pressurized water distribution systems
- Light commercial and retail water distribution
Technical Features:
- Pump body: cast iron
- Pump casing: aluminium
- Impeller: brass (stainless steel optional)
- Insulation class: B/F
- Mechanical seal: steatite ceramic / metalized carbon
- Closed motor, externally ventilated
- Max. water temperature: 80deg. C
- Max working pressure: 1000kPa (10 bar)
Performance Data (SQB60):
- Max suction head: 9m
- Max operating head (H): 36m
- Max flow (Q=L/min): 36L/min
- Pump duty: continuous rated
Pump Performance Curve:
| Weight | 5,5 kg |
|---|---|
| Dimensions | 27,5 × 14,5 × 18,5 cm |
