Sale!

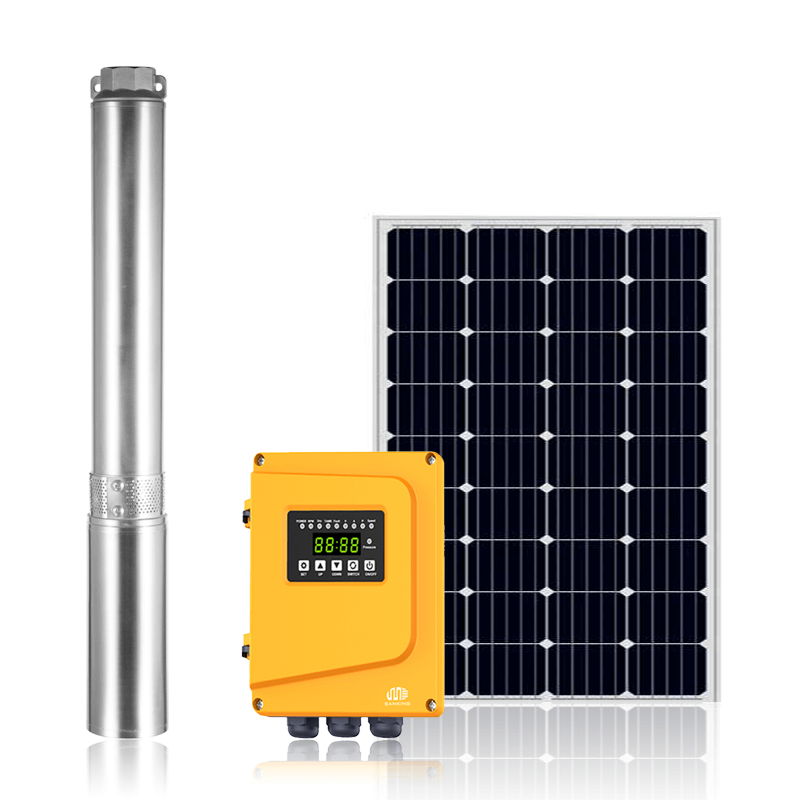

SamKing A/D-3SPW1-11P Pump/Motor/Controller

Original price was: R14 ,004.59.Current price is: R9 ,102.99.

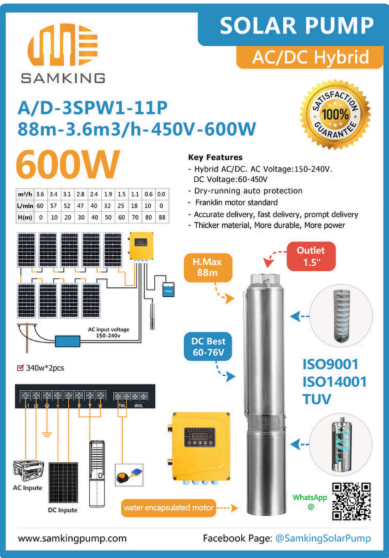

SAMKING A/D-3SPW1-11P 88m-3.6m3/h-450V-600W

1.5-Inch 600W DC Submersible Pump for Home Garden Irrigation

The SAMKING Solar Pump 3SPW1-11P / 600W is a high-quality, versatile centrifugal solar pump with a built-in controller designed to extend the life of the pump. It offers a maximum head of 88 meters and a maximum flow rate of 3,600 liters per hour. The controller model is 3SPW1-5P. This is a 1.5-inch diameter DC centrifugal pump with a power rating of 600 watts.

The key advantage of this pump series is its cost-effectiveness and practical design. It comes with a one-year warranty for both the DC solar pump and the DC controller.
Please note: Solar panels are not included in the package.

SamKing A/D-3SPW1-11P Pump/Motor/Controller

Solar Water Pump Motor Details

Power: 600W

Material: AISI 304

Type: BLDC motor

Feature: Encapsulated water filled

Bearing: Thrust bearing system

Current: Max. DC 15A

Submersion: Max. 150m

Water Temp: Max. 40°C

Efficiency: Max. 85%

Insulation Class: F

Max Voltage: DC Max. VOC 100V

Optimal Voltage: DC Best. Vmp 40-90V

Max Speed (Plastic): 4500 RPM

Max Speed (SS304): 4000 RPM

Max Speed (Helical): 4000 RPM

Enclosure Class: IPX8

Required Cooling Flow: 0.5L/s

 PROTECTION TYPE

Dry-Run: Yes

Reverse: Yes

Phase Loss: Yes

Over-Voltage: Yes

Low-Voltage: Yes

Over-Current: Yes

Over-Load: Yes

Over-Power: Yes

Over-Temperature: Yes

Stall: Yes

Error Display: Yes

Solar Product Advantages:

/ Stainless Steel-AISI 304 (316 Optional)

/ BLDC High Efficiency Motor

/ External Controller

/ Powered by DC Power Only

/ Voltage/Current/Power/Speed Display

/ Encapsulated water filled motor(No pollution risk)

/ Soft start running makes system’s life longer

/ Thrust bearing system

/ Positive and negative pole reverse connection alarm

/ Over-load/Over-current/Over-voltage/Low-voltage protection

/ Dry protection(No additional float sensor required)

/ A wide range of accessories

Solar Pump End:

Stainless steel: AISI 304 (316 optional)

Non-return valve

Recommend Max Input

Standards:

ISO 9001:2015 | ISO 14001

Solar Water Pump Controller Details

Type: External

Function: Voltage/current/power display

Voltage: 40-90Vmp/100Voc

MPPT Efficiency: Max.98%

Enclosure Class: IP65

Voltage: 40-100

Power (W): 600

Max flow (m3/hr): 3.6

Max Head: 72

Diameter: 3″

Outlet: 1.5″

Solar Panel: 2*410W

Controller type: External/Internal

Impeller: Plastic
