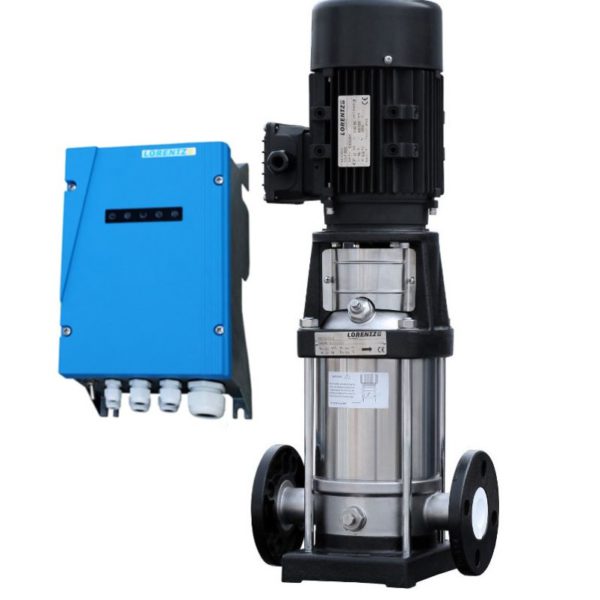

System overview
Head :                             max. 50 m
Flow rate :                        max. 8,5 m³/h
Technical Data
Controller PS2-1800
- Controlling and monitoring
- Control inputs for dry running protection, remote control etc.
- Protected against reverse polarity, overload and overtemperature
- Integrated MPPT (Maximum Power Point Tracking)
- Battery operation: Integrated low voltage disconnect
- Integrated Sun Sensor
Power :Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â max. 1,8 kW
Input voltage :Â Â Â Â Â Â Â Â Â Â Â max. 200 V
Optimum Vmp** :Â Â Â Â Â Â Â Â Â Â Â > 102 V
Motor current :Â Â Â Â Â Â Â Â Â Â Â Â max. 14 A
Efficiency :Â Â Â Â Â Â Â Â Â Â Â Â Â Â max. 98 %
Ambient temp. :          -40…50 °C
Enclosure class :Â Â Â Â Â Â Â Â Â Â Â Â Â IP68
Motor ECDRIVE 1800 CS-F
- Maintenance-free brushless DC motor
- Premium materials, stainless steel: AL/AISI 304
Rated power :Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1,7 kW
Efficiency :Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â max. 92 %
Motor speed :Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 900…3 300 rpm
Insulation class :Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â F
Enclosure class :Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â IPX4
Pump End PE CS-F4-6
- Premium materials
- Optional: dry running protection
- Centrifugal pump
