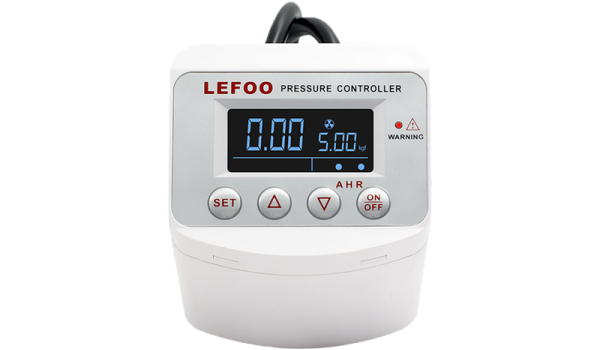

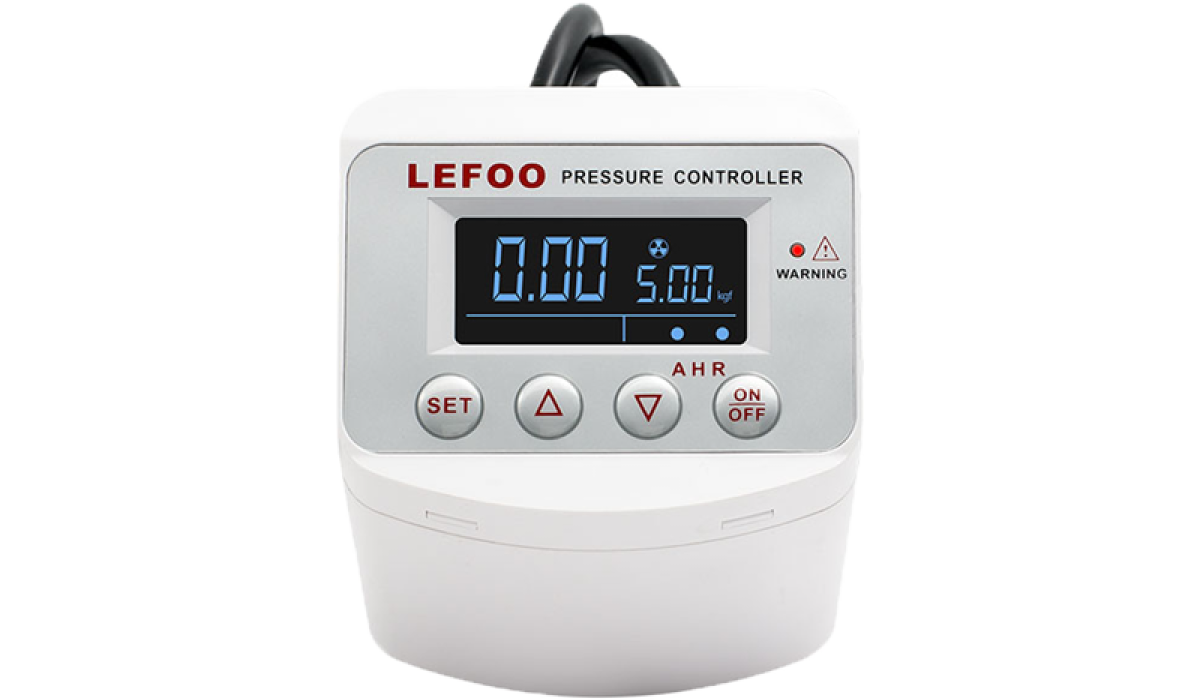

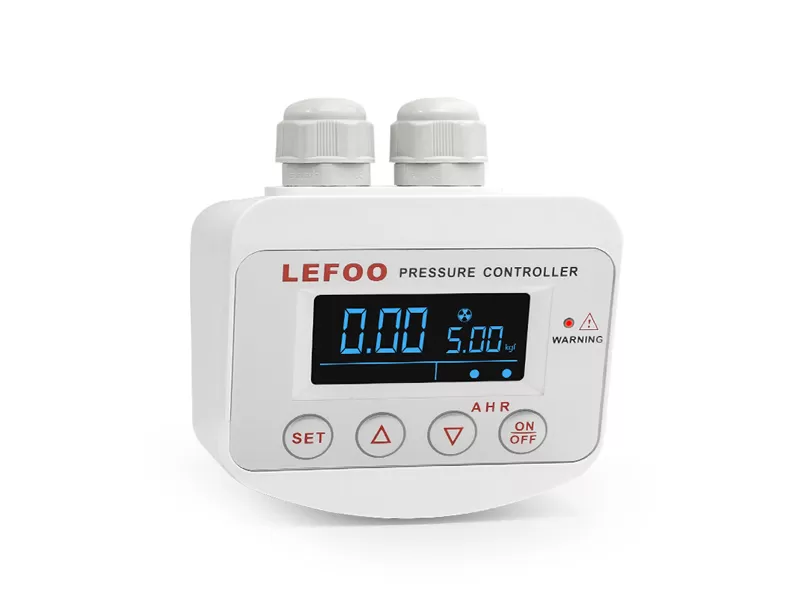

LEFOO-LFDS63 Digital Pressure Switch
R1 192,61
LFDS630 Digital Pressure Controller, -101~10kPa, positive pressure:0~16bar
SPECIFICATION
| Pressure type | Vacuum type(negative pressure) | Medium pressure type |
| Pressure range | -101~0kPa | 0~1…5MPa |
| Voltage withstand | 1.5 times | 2 times |
| Medium | Gas or liquid compatible with 1Cr18Ni9Ti, copper, Fluorine rubber or Nitrile Rubber | |
| Display mode | LCD | |
| Rated-operating voltage | 220/110VAC | |
| Output mode | Single AC output(active charge) | |
| Single Switch Output | ||
| Load capacity | 10A MAX | |
| Storage temperature | -40℃~85℃ | |
| Operating temperature | -10℃~50℃ | |
| Protection level | IP54 | |
| Pressure connection | G1/4(default), NPT1/4, R1/4 | |
| Accuracy | ±1%F.S | |
| Dimensions | 80*98*110mm(with connector) | |
LFDS630 630/631/632 series is made by high-reliability sensor to measure pressure. After disposed by back-end circuit, the signal shows on displayer and automatically control relay output when pressure changes.
With design of engineering plastic shell and high-contrast LCD displayer, this series product can be used in various industrial fields. Kinds of connection types can meet different installation requirements.
User can adjust parameters freely, with variety of settings built-in, it’s flexible and convenient. LFDS63 630/631/632 series is with features of anti-vibration, long lifetime, easy operation, high stability and clear display
Range: 0bar – 16bar

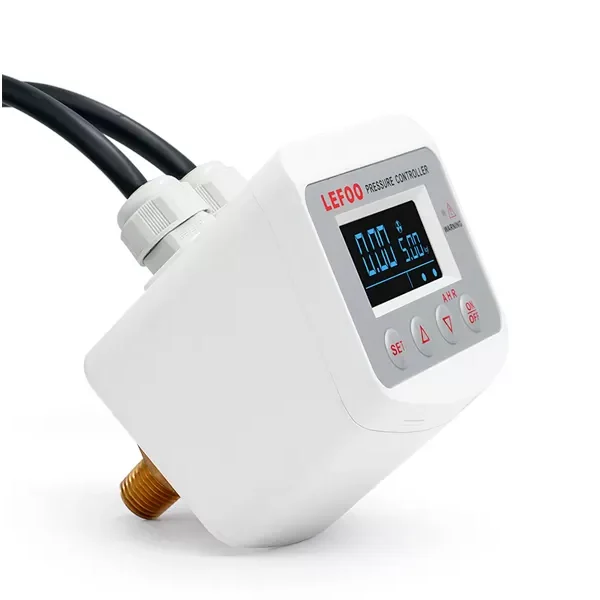

Single 1/4″ BSP Male Port
220V 50Hz output 10A Rating
IP52 Rating
Digital Display
Medium: Water

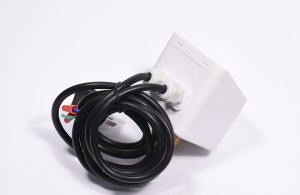

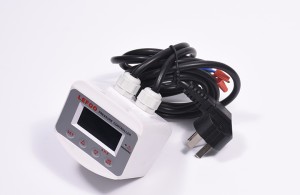

Pre-Wired in box
Model: LFDS63
Self-adjusting working parameters, flexible and convenient.
LCD display, rich in function.
High precision, vibration resistance, long service life.
Intelligent control instruments that integrate pressure measurement, display, and control.
Technical Specifications
