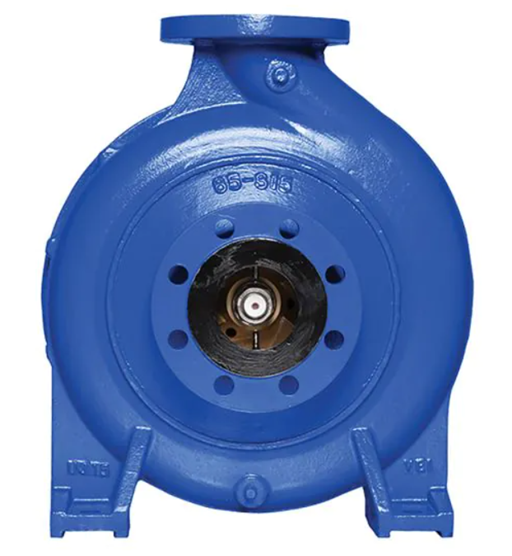

The Ebara GS pump range is a single-stage, end suction horizontal centrifugal pump that boasts a very wide product range with outlet diameters ranging from DN32 to DN200. Ebara GS model pumps provide high motor efficiency and energy-saving benefits due to the patented impeller design and double bronze wear ring which optimize fluid movement inside the pump. The GS range offers complete interchangeability with choices between multiple different materials which makes the GS models suitable to an extensive range of industries and applications, and allows the end-user to tailor the pump to their specific requirements. Ebara Pumps are manufactured to conform to international standards including EN 733; EN 12756; EN 294; ISO 2858; ISO 9001 and ISO 9906.

The Ebara GS model pumps are compatible with motors with rotation speeds of 1450rpm and 2900rpm.

The Ebara GS pump range is a single-stage, end suction horizontal centrifugal pump that boasts a very wide product range with outlet diameters ranging from DN32 to DN200. Ebara GS model pumps provide high motor efficiency and energy-saving benefits due to the patented impeller design and double bronze wear ring which optimize fluid movement inside the pump. The GS range offers complete interchangeability with choices between multiple different materials which makes the GS models suitable to an extensive range of industries and applications, and allows the end-user to tailor the pump to their specific requirements. Ebara Pumps are manufactured to conform to international standards including EN 733; EN 12756; EN 294; ISO 2858; ISO 9001 and ISO 9906.

The Ebara GS model pumps are compatible with motors with rotation speeds of 1450rpm and 2900rpm.

Applications:

• Coolant systems for the food and manufacturing industries
• Domestic, commercial and industrial hot and cold water systems
• Pressurized water systems
• HVAC Systems
• Fire Fighting Systems and Building Services
• Agriculture and irrigation
• Municipal water distribution systems

Technical Features:

• Single-stage horizontal centrifugal pump
• Suction/discharge: 50mm/32mm
• Pump casing: Cast Iron
• Impeller: Bronze
• Shaft seal: Gland Packing or Mechanical Seal
• Flanges: Cast iron PN16
• Max. working pressure: PN16 (1600kPa / 16 bar)
• Liquid temperatures (handling): -10deg. C to 120deg. C (max. 80 deg. C in case of packing gland)

Performance Data @ 2900 rpm:

• Max. Head (m): 24.8m
• Max. flow (Q=L/min): 400L/min

 Download PDF – Ebara GS 32-125.1 performance curve 2900 rpm

Performance Data @ 1450 rpm:

• Max. Head (m): 6.3m
• Max. flow (Q=L/min): 200L/min

  Download PDF – Ebara GS 32-125.1 performance curve 1450 rpm
