Ebara pumps

stainless steel borehole pumps high quality

Optima


Stainless Steel Submersible Pumps 4",6",8" & 10"

A submersible pump made from AISI 304 Stainless that comes with a mechanical seal in an oil bath in an oversized oil chamber. These features make the pump reliable, corrosion-resistant and durable. The pump offers excellent versatility in terms of installation. Mobile and fixed installations are both possible.



Best 2-5

An AISI 304 stainless steel submersible pump and comprises a double seal in oil. The option of a float is available which makes the pump versatile.



Best One Vox

AISI 304 stainless steel submersible pump with the mechanical seal in Ceramic/Carbon/NBR and oversized oil chamber that increases the life and reliability.
BEST ONE has a semi-open impeller, whereas BEST ONE VOX is equipped with a vortex-type impeller, to ensure a greater free passage and reduce the possibility of clogging.

The electric pumps offer great versatility of installation (fixed or mobile) due to the possibility of choosing between the vertical magnetic float switch (of reduced size) or the float switch. They are mainly used for, Emptying of basements, garages, cellars, or rooms subject to flooding, Emptying of tanks and reservoirs, and Supply of garden fountains.



DW - DW VOX

A submersible pump that comes with a single-channel impeller(DW) or a vortex impeller(DW VOX). It is suitable for both mobile and fixed installations. Made from AISI 304 stainless steel. DW-DW VOX  signifies threaded connection for pipes whereas DWF - DW VOXF signifies flanged connections.



DVS

Submersible pump with a cast iron semi-vortex impeller to prevent clogging. Can handle solids up to 70% of the discharge outlet diameter. It is only available for three-phase applications and is suitable for fixed and mobile applications. Its applications include pumping wastewater with solids or fibrous substances, pumping industrial wastewater, and drainage.



DML - DMLF

A cast-iron submersible pump ideal for heavy-duty use because of its sturdiness. They allow free passage for up to 76mm as a result of the single-channel impeller and are suitable for mobile and fixed installations.
Uses include:

  • Evacuation of civil and industrial wastewater
  • Slurry treatment
  • Drainage of underwater areas
  • General Handling of liquids, including those with solid and/or filamentary substances in suspension
  • Emptying of seepage water
  • Handling of dirty wastewater (sanitary services) and emptying of cesspits



DMLV - DMLVF

A submersible pump with a vortex impeller to allow free passage of solids and prevent clogging. Being a cast iron pump, it can be used for heavy-duty applications. It is usable in fixed and mobile applications.

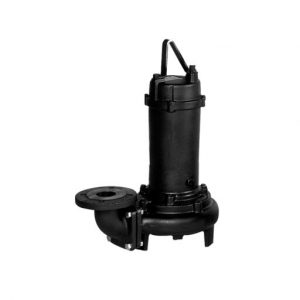

DL

A cast-iron submersible pump designed to prevent clogging by making use of a double-channel impeller and semi-open anti-clogging impeller thereby offering maximum efficiency. They come in different discharge diameters and the power rating gets up to 45kW.



DL W/C

A cast-iron submersible pump designed to prevent clogging by making use of a single-channel open impeller with a cutter and semi-open anti-clogging impeller thereby offering maximum efficiency. They come in different discharge diameters and the power rating gets up to 45kW.



DRD

Cast iron submersible pump with channel impeller (two-channel or three-channel). DRD electric pumps have good hydraulic efficiency and can be used in fixed and mobile installations.



JESX - JEX

AISI 304 stainless steel self-priming surface pump, is small and light making it suitable for domestic use. Mainly used for drinking water supply, domestic pressurization, emptying tanks and swimming pools, etc.



AGA - AGC

Cast iron self-priming centrifugal pump equipped with Venturi unit (ejector and diffuser) in PPE + PS reinforced with glass fibers. Practical, easy to use, and easily transportable thanks to its low weight. The AGA-AGC self-priming pump installed on a flat, well-secured surface allows for an installation of up to 8 meters. Suitable for residential applications: garden irrigation, vehicle washing, and clean water handling in general.



CDX(L)

Single radial impeller centrifugal pump with hydraulics entirely in pressed AISI 304 or AISI 316 (L version), with hydroformed components, which ensure sturdiness, hydraulic efficiency, and reliability.

Hydroforming, which combines the power of a press with the force of water, has significant advantages over traditional processes, namely:

  • Perfectly smooth shape
  • Highly smooth running
  • No welding points

These features ensure high corrosion resistance, high efficiency with performance above 80%, and low losses.
The small size of CDX(L) electric pumps makes them suitable for narrow or difficult-to-reach difficult to reach spaces.



2CDX(L)

Twin radial impeller centrifugal pump with hydraulics entirely in pressed AISI 304 or AISI 316 (L version), with hydroformed components, which ensure sturdiness, hydraulic efficiency, and reliability.
Hydroforming, which combines the power of a press with the force of water, has significant advantages over traditional processes, namely:

  • Perfectly smooth shape
  • Highly smooth running
  • No welding points

These features ensure high corrosion resistance, high efficiency with performance above 80%, and low losses.
The small size of CDX(L) electric pumps makes them suitable for narrow or difficult-to-reach difficult to reach spaces.



DWO

Open radial flow impeller centrifugal pump in AISI 304 stainless steel. Ideal for liquids not entirely clean snd can handle solids up to 19mm in diameter. The pump is constructed using the hydroforming process.



DWC

A centrifugal pump consisting of a closed radial flow impeller in an AISI 304 Stainless Steel casing. It is made from the exclusive hydroforming process which makes it sturdy. The standard seals are Ceramic/Carbon/EPDM but special seals can be used to suit different applications (e.g higher operating Temperature and heavy-duty applications).



CMA - B - C - D

Another single-impeller centrifugal pump with a cast iron body. Available in these models:
CMA-CMB-CMC-CMD. The models have different materials for impellers, shafts, and motors. Ideal for installations when places are narrow and difficult to reach.



CDA

The CDA is a cast iron electric pump equipped with a twin impeller to increase performance while maintaining its small size.


PRA - PRN


A cast iron body peripheral pump can be available in a nickel-plated version (PRN 0.50 single-phase).


Compact


Multistage horizontal cast iron centrifugal pump with technopolymer impeller. Its compact, lightweight, silent, and sturdy structure makes it a versatile product for many domestic applications.


Matrix


Horizontal multistage AISI stainless steel centrifugal pump suitable for drinking water. Its sturdy construction and compact design make it ideal for use in domestic and industrial applications.


CVM


Vertical multistage cast iron pump, with counter flanges, fitted as standard. It has a cast iron base as well as glass fiber reinforced technopolymer stages.


3(L)(4) Series


Centrifugal pump EN733 compliant and available in different materials:

  • Stainless steel AISI 304 (3 SERIES)
  • Stainless steel AISI 316 (3L SERIES)
  • Stainless steel AISI 316 micro-cast for some models (3L SERIES)

The 3 Series has a distinguishing feature, a back pull-out design. This feature allows the removal of the impeller-motor block without disconnecting the pump body from the piping. Making it easy for maintenance. The ranges are as follows:

  • Monobloc 3(L)M SERIES
  • With rigid coupling 3(L)S SERIES
  • With elastic coupling 3(L)P SERIES

For the 3LM SERIES and 3LS SERIES the Z version is available, with the casing body without the support foot and with a new foot directly mounted to the motor bracket.

This solution allows the pump to stay in limited spaces where it is not possible to connect the foot of the standard 3 SERIES and, most importantly, allows to connect the pump in different positions thanks to the 90° rotation of the foot.

The 3(L)S SERIES and 3(L)P SERIES are available with ATEX certified hydraulics and motor.

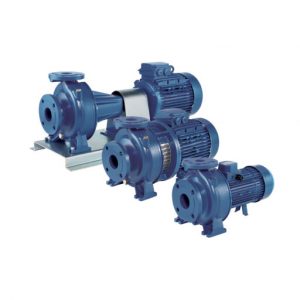

3D(4) Series


A cast-iron centrifugal pump with AISI 304 and AISI 316 stainless steel impeller, axial suction, and radial discharge with 2 or 4 pole motors. The 3D has a distinguishing feature, a back pull-out design. This feature allows the removal of the impeller-motor block without disconnecting the pump body from the piping. Making it easy for maintenance. Different types of mechanical seals can be used to adjust to specific uses. The 3D version is divided into 3 versions:

  • 3D SERIES monoblock with extended shaft
  • 3DS SERIES with rigid coupling and IEC Standard motor
  • 3DP SERIES with elastic coupling and IEC Standard motor


MD - MMD(4)


Centrifugal pump, a cast-iron monobloc with AISI 304 impeller(MD) and a cast iron impeller (MMD), with 2 and 4 pole motors. The MD and MMD have a distinguishing feature, a back pull-out design. This feature allows the removal of the impeller-motor block without disconnecting the pump body from the piping. Making it easy for maintenance.


GS


Cast iron single-stage centrifugal pump with a wide variety of materials available and a wide range from DN 32 up to DN 200. Available in a bare shaft model or electric pump.
Two types of seals are available, the packing one(Silicon Carbide fiber) and a mechanical one (Silicon Carbide/Carbon/EPDM). In addition, it has two replaceable bronze wear rings that ensure long-term reliable operation and high hydraulic efficiency. Power ranges from 0.37kW to 355kW which can be coupled with inverters.
